Concrete Slab Lifts
5.66m working height

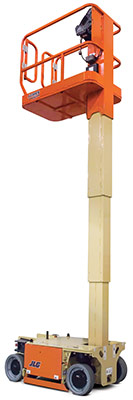

Concrete Slab Lift JLG1230es
Key Features
Working height: 5.66 m
Platform height-elevated: 3.66 m
Platform capacity: 230 kg
Machine width: 0.76 m
Machine length: 1.36 m
Machine height: 1.65 m
Clean fume free operation: Yes
Non marking tyres: Yes
Maximum drive height: 3.66 m
Weight: 790 kg
Ground bearing pressure: 8.65 kg/cm2
Drive speed–elevated: 0.8 km/h
Drive speed–lowered: 4.8 km/h
Gradeability: 25%
Turning radius (inside): 0.13 m
Platform size: 1.25m x .68m
Power source: Batteries
7.7m Working Height

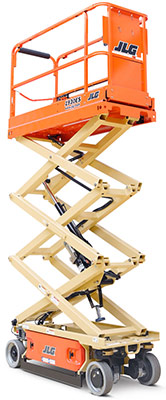

Concrete Slab Scissor Lift JLG1930es
Key Features
Working height: 7.72 m
Platform height-elevated: 5.72 m
Platform capacity: 227 kg
Capacity on platform extension: 113 kg
Clean fume free operation: Yes
Non marking tyres: Yes
Lift/Lower time: 26/30 seconds
Maximum drive height: Fully elevated
Weight: 1218 kg
Ground bearing pressure: 7.66 kg/cm2
Drive speed–elevated: 0.8 km/h
Drive speed–lowered: 4.82 km/h
Gradeability: 25%
Turning radius (inside): 0
Turning radius (outside): 1.75 m
Platform size: 0.76 x 1.87m
Power source: Batteries
8m Working Height

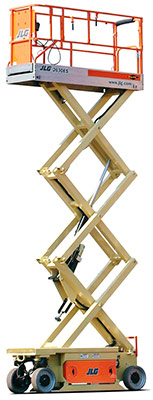

Concrete Slab Scissor Lift JLG2030
Key Features
Working height: 8 m
Platform height-elevated: 6 m
Platform capacity: 360 kg
Machine width: 0.76 m
Machine length: 2.3 m (deck retracted)
Machine height: 1.87 m (rails collapsed)
Capacity on platform extension: 120 kg
Clean fume free operation: Yes
Non marking tyres: Yes
Lift/Lower time: 38/40 seconds
Maximum drive height: 3.66 m
Weight: 2063 kg
Ground bearing pressure: 6.3 kg/cm2
Drive speed-elevated: 0.8 km/h
Drive speed-lowered 4.8 km/h
Gradeability: 25%
Turning radius (inside): 0
Platform size: 2.3m x .76m
Power source: Batteries
9.75m Working Height

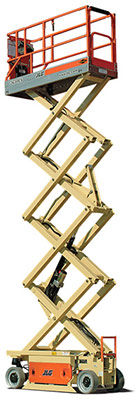

Concrete Slab Scissor Lift JLG2630
Key Features
Working height: 9.75 m
Platform height-elevated: 7.75 m
Platform capacity: 230 kg
Machine width: 0.8 m
Machine length: 2.3 m (deck retracted)
Machine height: 1.9 m (rails collapsed)
Capacity on platform extension: 120 kg
Clean fume free operation: Yes
Non marking tyres: Yes
Lift/Lower time: 38/40 seconds
Maximum drive height: 7.75 m
Weight: 2198 kg
Ground bearing pressure: 6.3 kg/cm2
Drive speed-elevated: 0.8 km/h
Drive speed-lowered: 4.4 km/h
Gradeability: 35%
Turning radius (inside): 0
Platform size: 2.3m x .8m
Power source: Batteries
9.92m Working Height

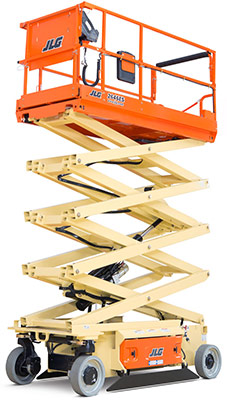

Concrete Slab Scissor Lift JLG2646es
Key Features
Working height: 9.92 m
Platform height-elevated: 7.92 m
Platform capacity: 454 kg
Capacity on platform extension: 113 kg
Clean fume free operation: Yes
Non marking tyres: Yes
Lift/Lower time: 41/50 seconds
Maximum drive height: Fully elevated
Weight: 2243 kg
Ground bearing pressure: 6.11 kg/cm2
Drive speed-elevated: 0.8 km/h
Drive speed-lowered: 4.00 km/h
Gradeability: 25%
Turning radius (inside): 0
Turning radius (outside): 2.41 m
Platform size: 1.12 x 2.5 m
Power source: Batteries
11.68m working height

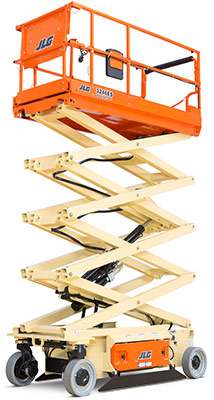

Concrete Slab Scissor Lift JLG3246es
Key Features
Working height: 11.68 m
Platform height-elevated: 9.68 m
Platform capacity: 454 kg
Capacity on platform extension: 113 kg
Clean fume free operation: Yes
Non marking tyres: Yes
Lift/Lower time: 55/62 seconds
Maximum drive height: Fully elevated
Weight: 2243 kg
Ground bearing pressure: 6.11 kg/cm2
Drive speed-elevated: 0.8 km/h
Drive speed-lowered: 4.00 km/h
Gradeability: 25%
Turning radius (inside): 0
Turning radius (outside): 2.41 m
Platform size: 1.12 x 2.5 m
Power source: Batteries
14.2m working height

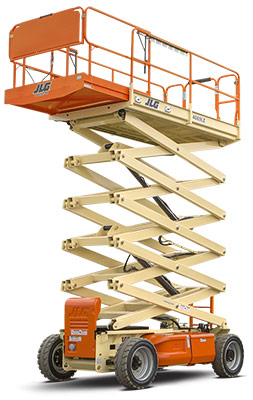

Concrete Slab Scissor Lift JLG4069LE
Key Features
Working height: 14.2 m
Platform height-elevated: 12.19 m
Platform capacity: 362.87 kg
Capacity on platform extension: 113.4 kg
Clean fume free operation: Yes
Non marking tyres: Yes
Lift/Lower time: 54/50 seconds
Maximum drive height: 9 m
Weight: 4790 kg
Ground bearing pressure: 4.27 kg/cm2
Drive speed-elevated: 0.64 km/h
Drive speed-lowered: 4.83 km/h
Gradeability: 35%
Turning radius (inside): 0
Turning radius (outside): 4.72 m
Platform size: 2.92 x 1.65 m
Power source: Batteries
Rough Terrain Lifts
9.92m Working Height

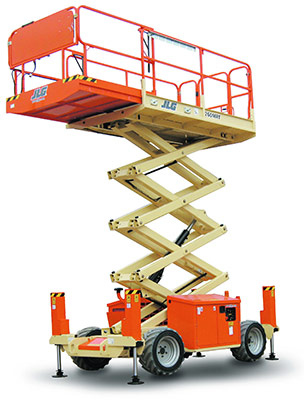

Rough Terrain Scissor Lift JLG260MRT
Key Features
Working height: 9.92 m
Platform height-elevated: 7.92 m
Platform capacity: 567 kg
Capacity on platform extension: 136 kg
Clean fume free operation: NA
Non marking tyres: NA
Lift/Lower time: 27/21 seconds
Maximum drive height: Fully elevated
Weight: 3338 kg
Ground bearing pressure: NA
Drive speed-elevated: 0.6 km/h
Drive speed-lowered: 5.6 km/h
Gradeability: 35%
Turning radius (inside): 2.13 m
Turning radius (outside): NA
Platform size: 1.65 x 2.59 m
Power source: 18.3 kW Diesel Engine
15.11m Working Height

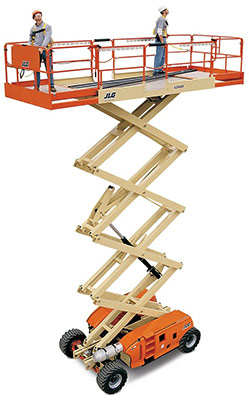

Rough Terrain Scissor Lift JLG4394
Key Features
Working height: 15.11 m
Platform height-elevated: 13.11 m
Platform capacity: 680 kg
Capacity on platform extension: 227 kg
Clean fume free operation: NA
Non marking tyres: NA
Lift/Lower time: 40/43 seconds
Maximum drive height: 13.11 m
Weight: 6940 kg
Ground bearing pressure: NA
Drive speed-elevated: 0.8 km/h
Drive speed-lowered: 6.4 km/h
Gradeability: 45%
Turning radius (inside): 2.71 m
Turning radius (outside): 5.93 m
Platform size: 2.18 x 3.81 m
Power source: 36.4 kW Diesel Engine
14.2m Working Height
Semi Rough Terrain Scissor Lift JLG4069LE
Key Features
Working height: 14.2 m
Platform height-elevated: 12.19 m
Platform capacity: 362.87 kg
Capacity on platform extension: 113.4 kg
Clean fume free operation: Yes
Non marking tyres: Yes
Lift/Lower time: 54/50 seconds
Maximum drive height: 9 m
Weight: 4790 kg
Ground bearing pressure: 4.27 kg / cm2
Drive speed-elevated: 0.64 km/h
Drive speed-lowered: 4.83 km/h
Gradeability: 35%
Turning radius (outside): 4.72 m
Platform size: 2.92 x 1.65 m
Power source: Batteries
Lighting Towers

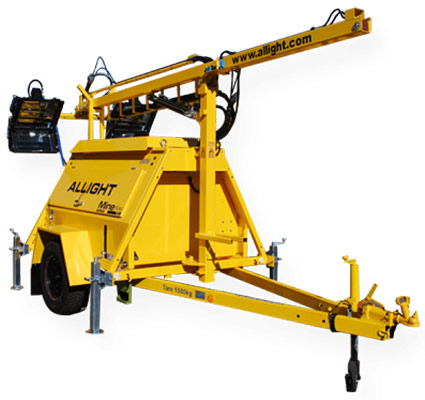

Allight 9m Lighting Tower
MS6K9
Key Features
The MS6K9 is a 9m lighting tower with four 1500W metal halide lamps and hydraulic operational features, available in skid or single-axle trailer mounted configurations.
Naturally aspirated, with high power and torque
Compact designs
Minimised noise levels and controlled subjective harshness
Reliable and durable, with low oil consumption and service intervals set at 500 hours as standard
Seven scopes of lighting direction/positioning
Highwall overhang capabilities
